Description

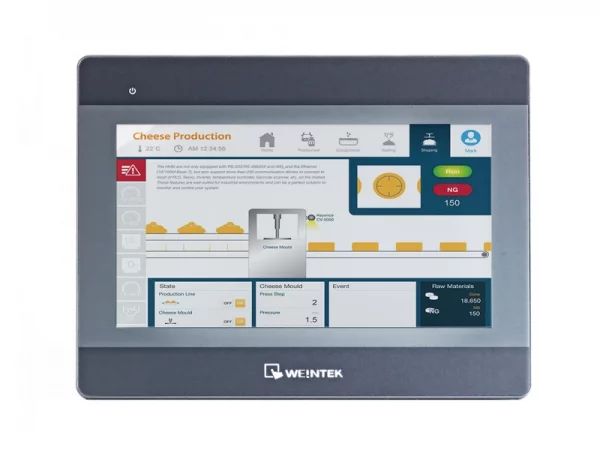

Specifications of the operator panel Weintek MT8102iP
Display
| Screen diagonal | 10.1 ″ |
| Permission | 1024×600 |
| Brightness | 350 cd/m2 |
| Backlight type | LED |
| Backlight life time | >20000 time. |
| Contrast | 500:1 |
| Chroma | 16.7 mln |
| Viewing angle | 60/60/70/70 |
Sensor
| Sensor type | 4 wire resistive |
Options
| Processor | ARM RISC |
| Frequency | 528 MHz |
| OZU | 128 MB |
| Flash (embedded) | 0.125 GB |
| RTC (real time clock) | There is |

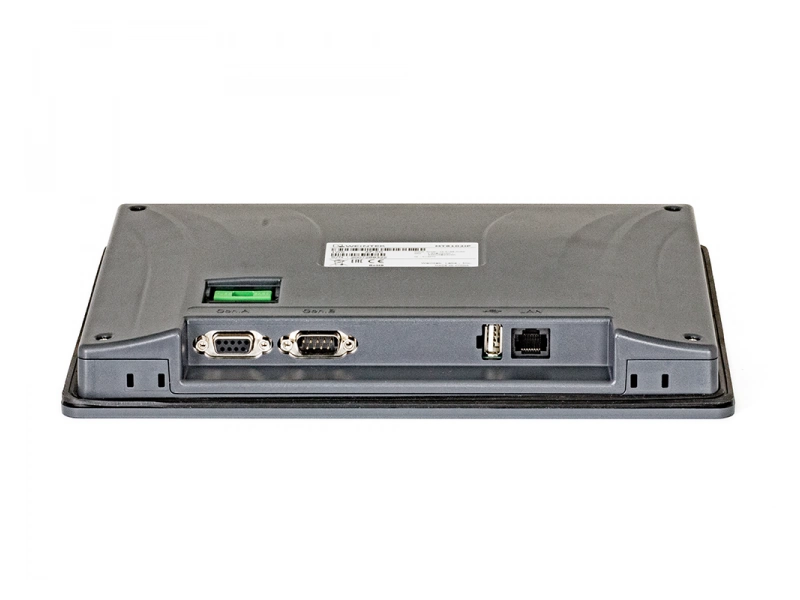

Interfaces
| Ethernet | 10/100 Base-T x 1 |
| Serial interface | Con.A: COM2 RS-485 2W/4W, COM3 RS-485 2W Con.B: COM1 RS-2324W,COM3 RS-2322W |
| USB host | USB 2.0 x 1 |
| Modbus support | RTU, ASCII, Master, Slave, TCP/IP |
| Drivers for working with controllers | Over 300 Weintek compatible drivers |

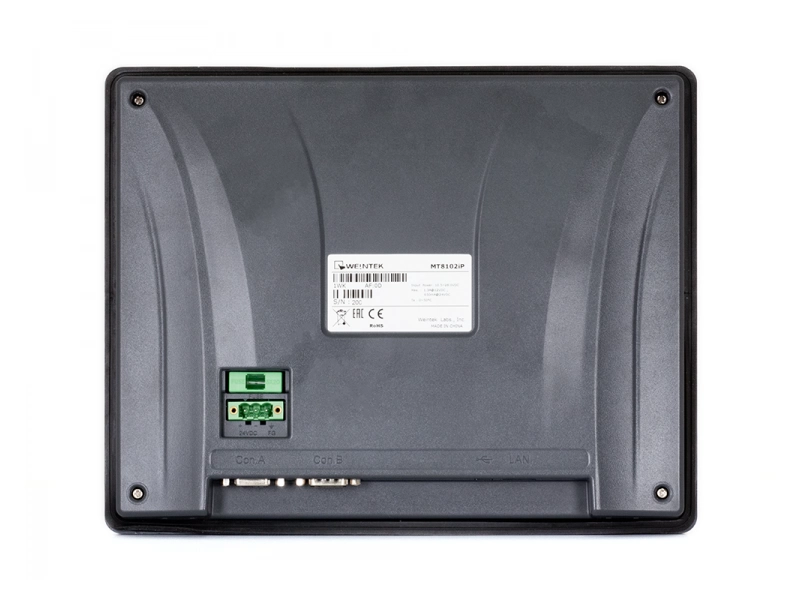

Construction
| Corpus material | Plastic |
| Degree of protection of the front panel | IP65 |
| landing hole | 260x202mm |
| Dimensions | 271x213x36.4 mm |
| Net weight) | 1 kg |
| wall mount | there is |
| Contents of delivery | fasteners, fuse, power connector, instructions |
PO
| Project development software | EasyBuilderPro |
| Maximum project size | 16 Mb |
| The amount of memory for saving archives in the panel | 48 Mb |
| Codesys | Not |
Operation and storage
| Working temperature | 0~50 ℃ |
| Storage temperature | -20~60 ℃ |
| Current consumption | 0.65 |
| Supply voltage | 10.5~28VDC |
| Vibration resistance | 10 ~ 25Hz (3 ex 2G 30 min) |
| Certificates | CE marked |

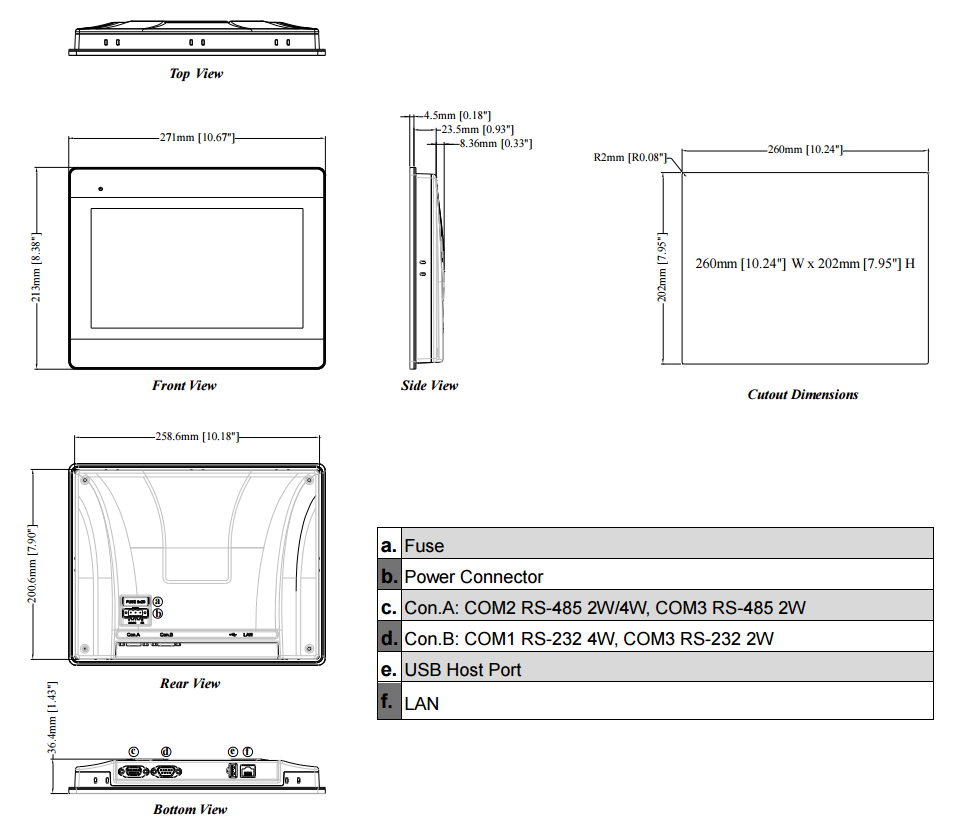

Operator panel dimensions Weintek MT8102iP
Dimensions: 271x213x36.4 mm
Mounting hole: 260×202 mm
Wiring Diagram Weintek MT8102iP
Connector Name:
Con.B: COM1/COM3 [RS232] 9 Pin, Male, D-sub
Type:
DB-9 M ( Male )
Con.B: COM1/COM3 [RS232] 9 Pin, Male, D-sub
Type:
DB-9 M ( Male )
| Pin # | COM1 (RS232) | COM3 (RS232) |
|---|---|---|
| 1 | ||
| 2 | RxD | |
| 3 | TxD | |
| 4 | ||
| 5 | GND | GND |
| 6 | ||
| 7 | RTS | TxD |
| 8 | CTS | RxD |
| 9 | GND | GND |
Connector name:
Con.A: COM2 / COM3 [RS485] 9 Pin, Female, D-sub
Type:
DB-9 F ( Female )
Con.A: COM2 / COM3 [RS485] 9 Pin, Female, D-sub
Type:
DB-9 F ( Female )
| Pin # | COM2 (RS485 2W) | COM2 (RS485 4W) | COM3 (RS485) |
|---|---|---|---|
| 1 | Data-(B) | RX- | |
| 2 | Data+(A) | RX+ | |
| 3 | TX- | ||
| 4 | TX+ | ||
| 5 | GND | GND | GND |
| 6 | Data-(B) | ||
| 7 | |||
| 8 | |||
| 9 | DATA+(A) |
