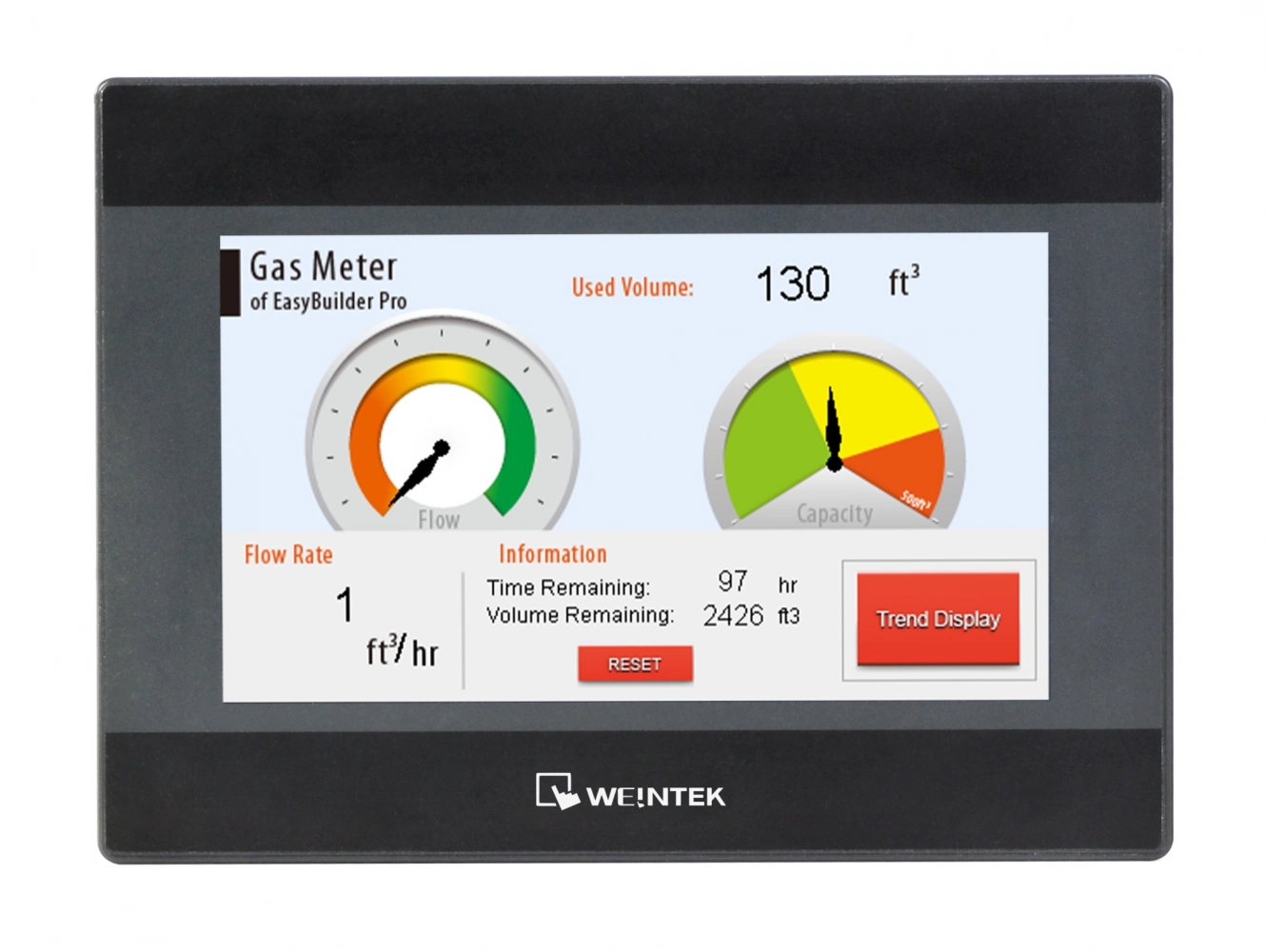

Specifications of the operator panel Weintek MT8071iP
Display
| Screen diagonal |
7.0″ |
| Permission |
800×480 |
| Brightness |
300 cd/m2 |
| Backlight type |
LED |
| Backlight life time |
30000 hours |
| Contrast |
500:1 |
| Chroma |
16 million |
| Viewing angle |
70/50/70/70 |
Sensor
| Sensor type |
4 wire resistive |
Options
| CPU |
Cortex A8 |
| Frequency |
600 MHz |
| RAM |
128 MB |
| Flash (embedded) |
0.125 GB |
| RTC (real time clock) |
There is |

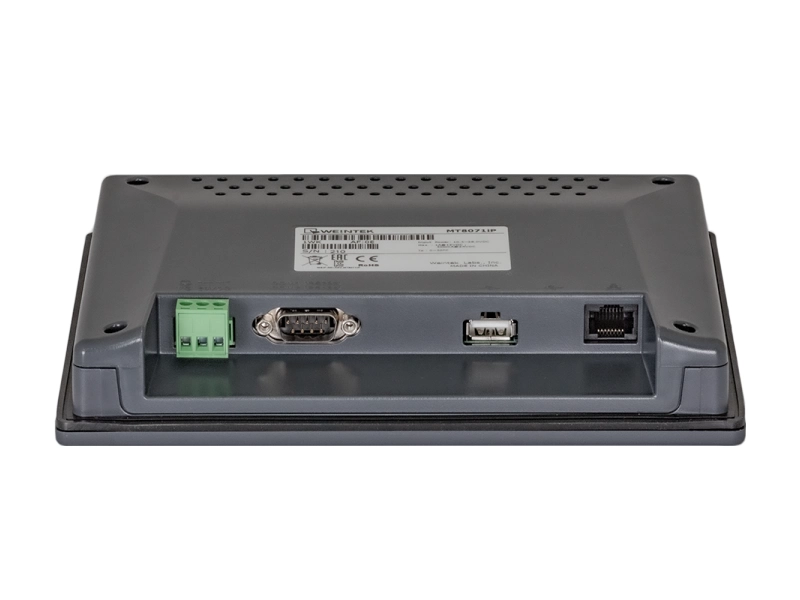

Interfaces
| ethernet |
1 x 10/100 Base-T |
| Serial interface |
COM1 (RS232), COM3 (RS485 2W) |
| USB host |
1xUSB2.0 |
| Modbus support |
RTU, ASCII, Master, Slave, TCP/IP |
| Drivers for working with controllers |
Over 300 Weintek compatible drivers |
Design
| Housing material |
Plastic |
| Degree of protection of the front panel |
IP65 |
| landing hole |
192x138mm |
| Dimensions |
200.4×146.5x34mm |
| Net weight) |
0.52 kg |
| wall mount |
there is |
| Contents of delivery |
fasteners, fuse, power connector, instructions |
software
| Project development software |
EasyBuilderPro |
| Maximum project size |
16 MB |
| The amount of memory for saving archives in the panel |
48 MB |
| codesys |
Not |
Operation and storage
| Working temperature |
0~50℃ |
| Storage temperature |
-20~60℃ |
| Current consumption |
0.5 |
| Supply voltage |
10.8~28VDC |
| Vibration resistance |
10 ~ 25Hz (3 ex 2G 30 min) |
| Certificates |
CE |

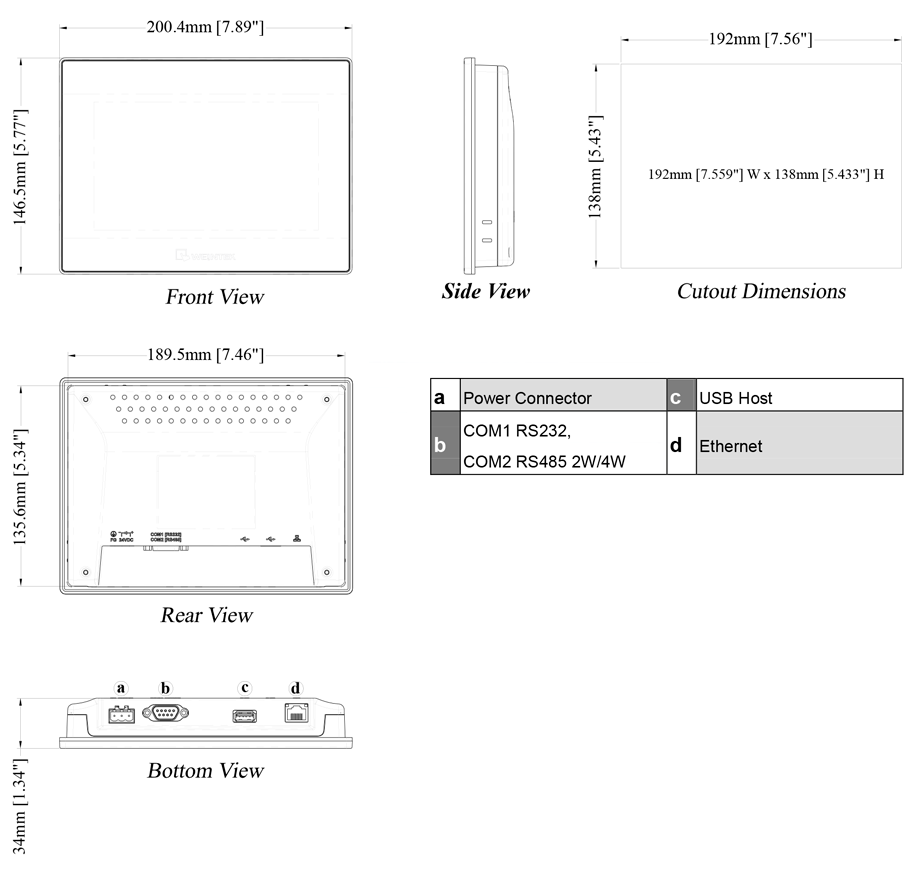

Weintek MT8071iP operator panel dimensions
Dimensions: 200.4×146.5×34 mm
Mounting hole: 192x138mm

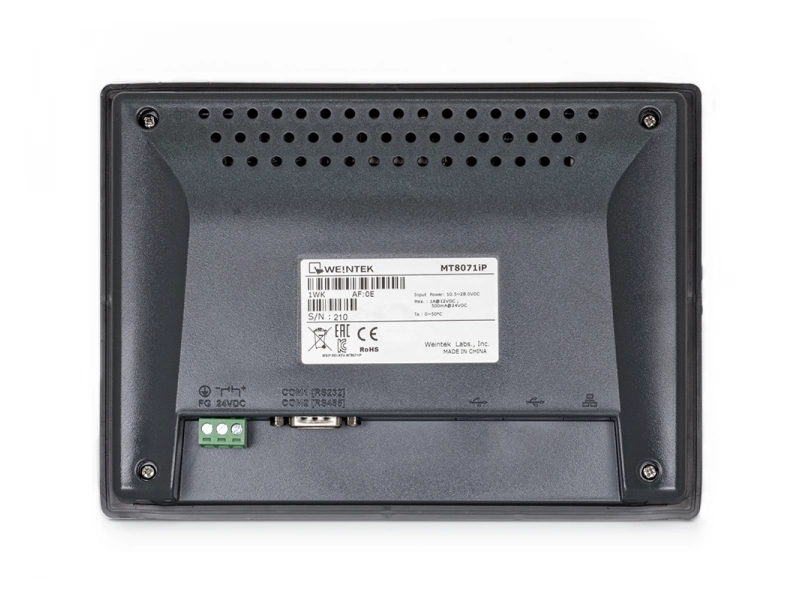

Wiring Diagram Weintek MT8071iP
Connector Name:
COM1[RS232] / COM2[RS485] 9 Pin, Male, D-sub
Type:
DB-9 M ( Male )
| Pin# |
COM1 (RS232) |
COM2 (RS485)4W |
COM2 (RS485)2W |
| one |
|
Rx- |
Data-(B) |
| 2 |
|
Rx+ |
Data+(A) |
| 3 |
|
Tx- |
|
| four |
|
Tx+ |
|
| 5 |
GND |
GND |
GND |
| 6 |
TXD |
|
|
| 7 |
RTS |
|
|
| eight |
CTS |
|
|
| 9 |
RXD |
|
|
