Description

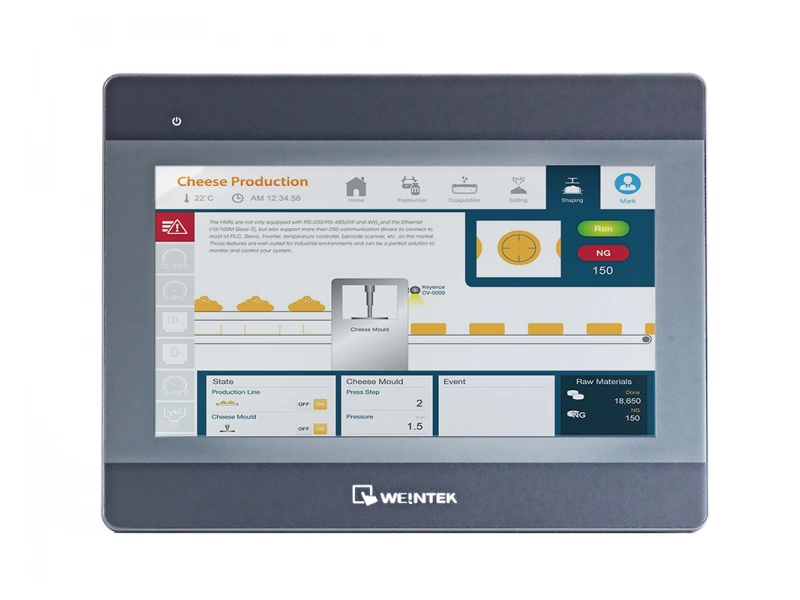

Specifications of Weintek cMT2078X operator panel
Display
| Screen diagonal | 7.0″ |
| Permission | 800×480 |
| Brightness | 400 cd/m2 |
| Backlight type | LED |
| Backlight life time | 30000 hours |
| Contrast | 800:1 |
| Chroma | 16.7 million |
| Viewing angle | 60/80/80/80 |
Sensor
| Sensor type | Resistive touch screen |
Options
| CPU | Quad-core RISC 1.5GHz |
| Frequency | 1500 MHz |
| RAM | 1000 MB |
| Flash (embedded) | 4 GB |
| RTC (real time clock) | There is |
Interfaces
| ethernet | 10/100 Base-T x 2 |
| Serial interface | Con.A: COM2 RS-485 2W/4W, COM3 RS-485 2W, Con.B: COM1 RS-232 4W, COM3 RS-232 2W* |
| USB host | 1xUSB2.0 |
| OPCUA support | OPC UA Client |
| MQTT support | There is |
| Connecting a USB camera | There is |
| Connecting an IP camera | There is |
| Modbus support | RTU, ASCII, Master, Slave, TCP/IP |
| Drivers for working with controllers | Over 300 Weintek compatible drivers |
| Power connector | 3 pin latching |
Design
| Housing material | Plastic |
| landing hole | 192x138mm |
| Dimensions | 200x146x35 mm |
| Net weight) | 0.6 kg |
| wall mount | there is |
| Contents of delivery | fasteners, fuse, power connector, instructions |
software
| Project development software | EasyBuilderPro, EasyLauncher, cMT Viewer |
| WebView – remote control via web browser | There is |
| Maximum project size | 64 MB |
| Limit for saving archives in the panel | 40 data sampling objects |
| codesys | Optional |
| Ftp access to SD card and flash drive | There is |
| Ftp memory access panel | There is |
Operation and storage
| Working temperature | 0°C ~ 50°C |
| Storage temperature | -20°C ~ 60°C |
| Current consumption | 0.82 |
| Supply voltage | 24 ±20% VDC |
| Certificates | CE |
Weintek cMT2078X operator panel dimensions
Dimensions: 200x146x35 mm
Mounting hole: 192x138mm
Wiring diagram Weintek cMT2078X
Connector Name:

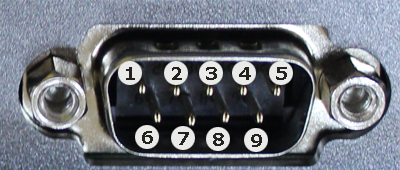

Con.B: COM1 /COM3 [RS232] 9 Pin, Male, D-sub
Type:
DB-9 M ( Male )
Con.B: COM1 /COM3 [RS232] 9 Pin, Male, D-sub
Type:
DB-9 M ( Male )
| Pin# | COM1 (RS232) | COM3 (RS232) |
|---|---|---|
| one | – | |
| 2 | RxD | |
| 3 | TxD | |
| four | ||
| 5 | GND | GND |
| 6 | ||
| 7 | RTS | TxD |
| eight | CTS | RxD |
| 9 | GND | GND |
Connector Name:

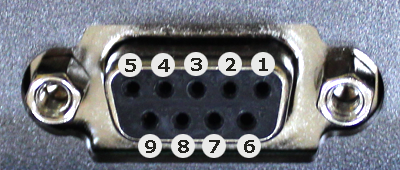

Con.A: COM2 /COM3 [RS485] 9 Pin, Female, D-sub
Type:
DB-9 F ( Female )
Con.A: COM2 /COM3 [RS485] 9 Pin, Female, D-sub
Type:
DB-9 F ( Female )
| Pin# | COM2[RS485]2W | COM2[RS485]4W | COM3[RS485]2W |
|---|---|---|---|
| one | Data- | Rx- | |
| 2 | Data+ | Rx+ | |
| 3 | Tx- | ||
| four | Tx+ | ||
| 5 | GND | GND | GND |
| 6 | Data- | ||
| 7 | |||
| eight | |||
| 9 | Data+ |
