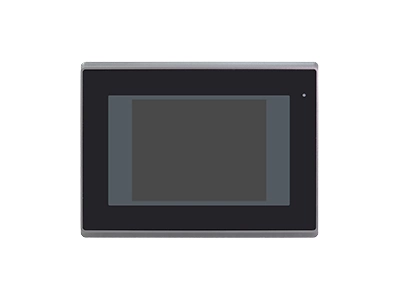

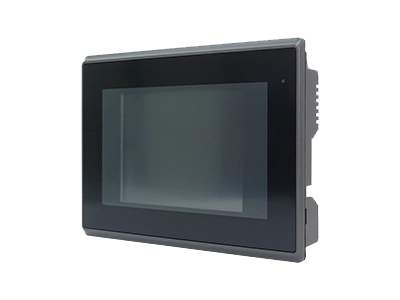

APLEX ARMPAC-505P Panel Computer Specifications
Display
| Screen diagonal | 5.6 ″ |
| Permission | 640×480 |
| Brightness | 350 cd/m2 |
| Contrast | 500:1 |
| Chroma | 262K |
| Viewing angle | 140°(H), 120°(V) |
Sensor
| Sensor type | capacitive |
| Sensor controller | RS-232 |
Options
| The maximum possible amount of RAM | 1024 Mb |
| RAM type | DDR3 |
| Preinstalled drive | 0.5 GB |
| Drive type | nand flash |
| Space for hard drives | 1 |
| Drive form factor | 2.5 ″ |
| drive interface | mini-PCIe |

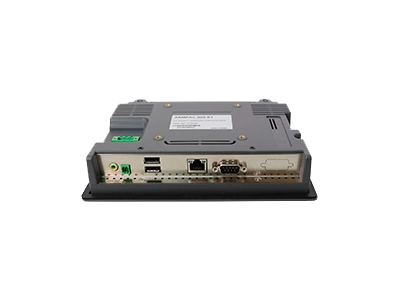

Interfaces
| SD card slot | micro-SD |
| PCI | 1 x mini-PCIe |
| SIM card slot | 1 x SIM slot |
| Line audio output | 3.5mm jack |
| Power connector | 3-pin latching |
Construction
| Corpus material | plastic |
| Degree of protection of the front panel | IP65 |
| Wall mount VESA 75 | there is |
PO
| Installed OC | Windows CE 7.0 |
Operation and storage
| Working temperature | 0 – 50 ℃ |
| Power | 14 W |
| Power switch | 2x pin connector for connecting an external power switch |
| Power Supply | 220 VAC /12 VDC included |

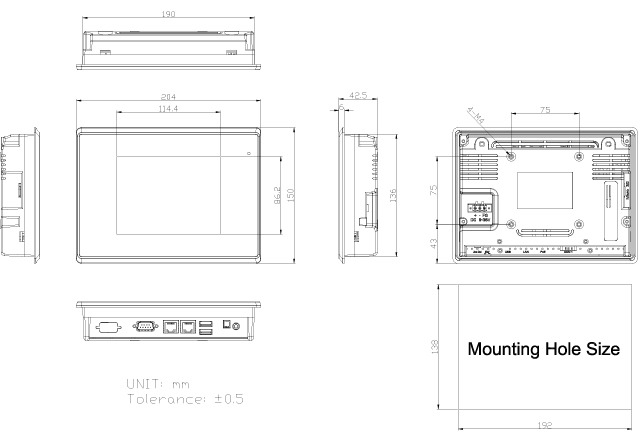

APLEX ARMPAC-505P Panel Computer Dimensions
Dimensions: 204x150x42.5 mm
Mounting hole: 192x138mm
Wiring Diagram APLEX ARMPAC-505P
Connector name:
COM1 RS-232, RS-422, RS-485
Type:
DB-9M (Papa)
| #pin | In RS-232 mode | In RS-422 mode | In RS-485 mode |
|---|---|---|---|
| 1 | DCD | RX+ | |
| 2 | RXD | RX- | |
| 3 | TXD | TX- | DATA-(B) |
| 4 | DTR | TX+ | DATA+(A) |
| 5 | GND | GND | GND |
| 6 | DSR | ||
| 7 | RTS | ||
| 8 | CTS | ||
| 9 | RI/5V/12V(choice-JP1) |
Connector name:
COM2 RS-232, RS-422, RS-485
Type:
DB-9M (Papa)
| #pin | In RS-232 mode | In RS-422 mode | In RS-485 mode |
|---|---|---|---|
| 1 | DCD | RX+ | |
| 2 | RXD | RX- | |
| 3 | TXD | TX- | DATA-(B) |
| 4 | DTR | TX+ | DATA+(A) |
| 5 | GND | GND | GND |
| 6 | DSR | ||
| 7 | RTS | ||
| 8 | CTS | ||
| 9 | RI/5V/12V(choice-JP1) |
